MYTHOS TX-1.1 Track Handlebar

REGISTERED WITH UCI FOR USE IN 2024 PARIS OLYMPIC GAMES

As seen at the 2023 UCI World Championships ridden by Jan Willem Van Schipp to 1st place in the Madison.

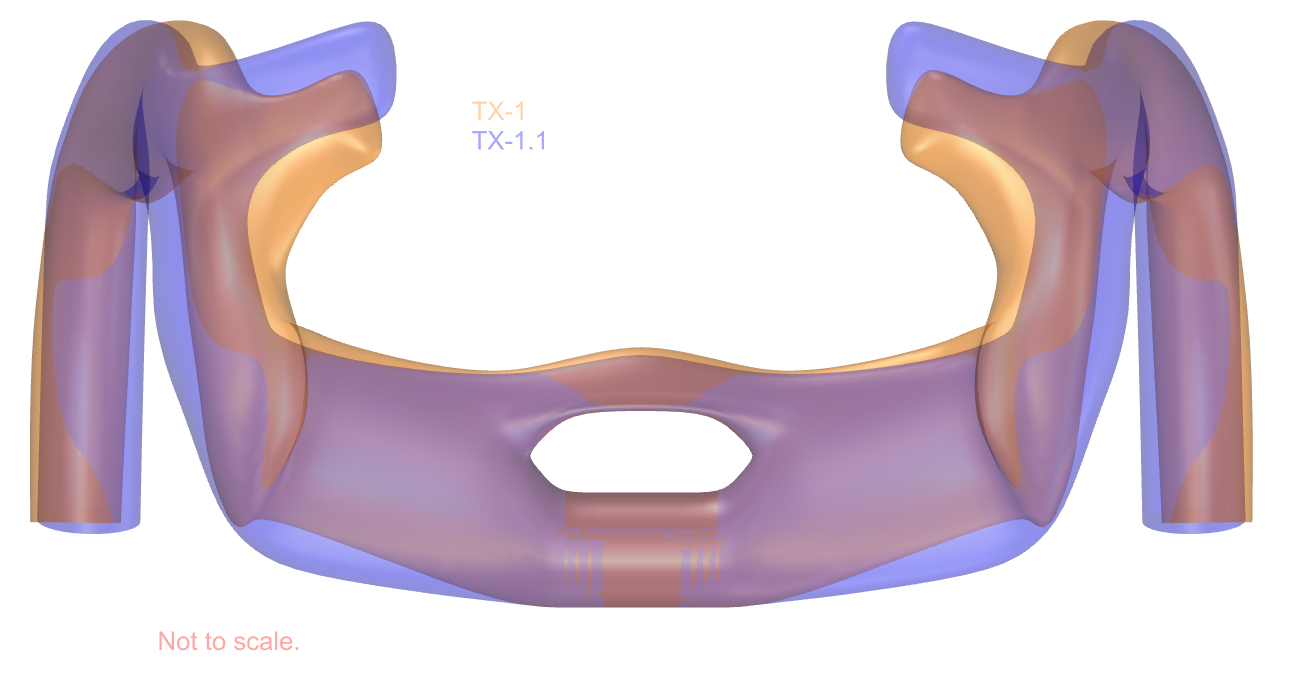

The TX-1.1 is an evolution of our popular TX-1 3D printed titanium track handlebar, implementing improvements developed with world class track athletes. These improvements are centred around rider comfort, allowing you to hold an aero position for longer.

Designed specifically for mass start track races, the TX-1.1 track handlebar with hoods takes advantage of the new UCI regulations that allows the handlebar overhang to be 10cm in front of the front wheel axle. By allowing 6 hand positions, the TX-1.1 significantly increases the rider’s options to maximise aerodynamics, rider manoeuvrability and comfort.

Click here to learn more about wind tunnel testing of our TX-1.1 handlebar

Sprint vs Standard:
The TX-1.1 sprint is designed to be strong and stiff enough for the world’s best sprinters, designed and tested using the same load cases as our S24 sprint bar which carried Australia’s sprinters to 4 Olympic medals at Paris 2024. The result is a handlebar that is 35% stiffer, with only a 15% weight increase (32cm).

Features:

• Aerofoil cross sections

• Multiple position options from a single bar

• Improved rider comfort

• 3D printed

• Aerospace grade Titanium (Ti6Al4V)

• Raw as-made 3D printed finish

Specification:

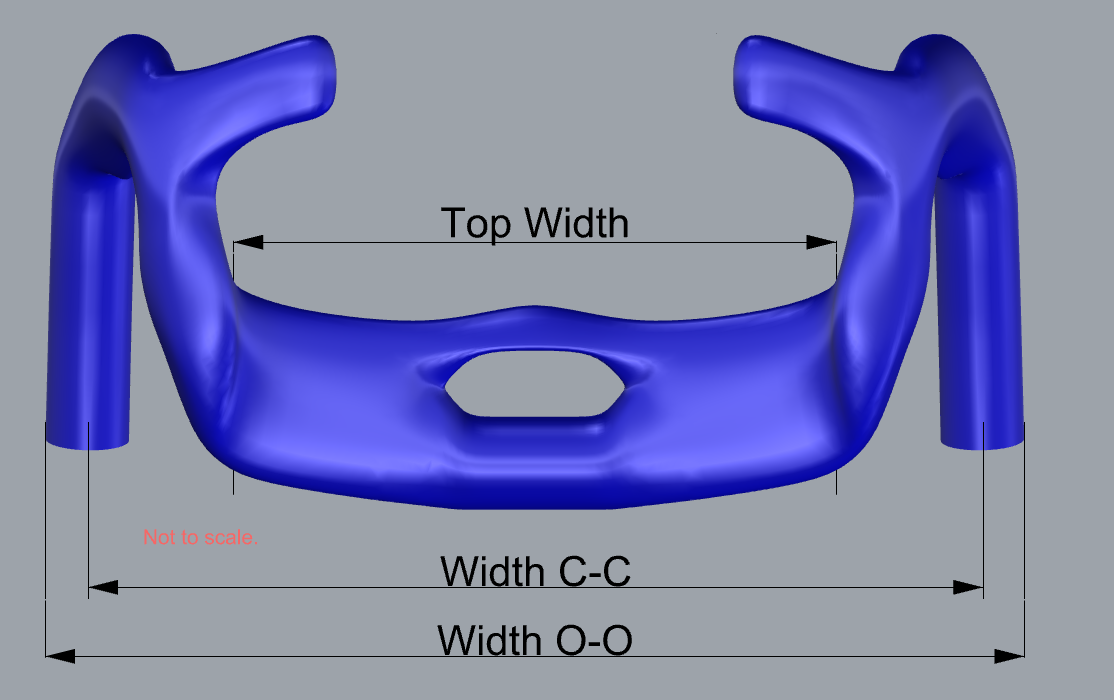

Width at drops (outer to outer): Size 35cm: 345mm, Size 32cm: 315 mm, Size 29cm: 285mm
Width at hoods (outer to outer): 29 / 26 / 23 cm
Reach: 155mm
Clamp Diameter: 31.8mm
Material: Aerospace grade Titanium (Ti6Al4V)
Weight: Size 29cm (Standard): 367g, Size 32cm (Standard): 381g, Size 35cm (Standard): 397g. Size 32cm (Sprint): 439g, Size 35cm (Sprint): 461g.

Tested using a track-adapted ISO 4210 test regime. Please contact us to request test reports.
